New DigitalBins Hardware Solutions available for order now

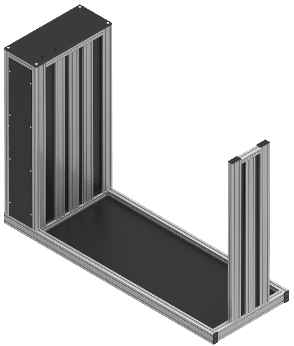

Universal Frame – This universal frame can be used to create the Mobile Cart or Mobile Rack below. Constructed using light-weight, commercial grade, extruded aluminum. The small, enclosed utility area protects wiring and electronics. Built-in computing options include a Microsoft Surface Pro 7 or 8, wired & wireless Ethernet and soon, our distributed processing architecture.
Options:
• Shelves (maximum 12 per frame)
• 5.50” locking, swivel casters
• 4.75” jacking casters
• Wired or wireless Ethernet
• Rear panel with built-in holder for a Microsoft Surface Pro 7 or 8

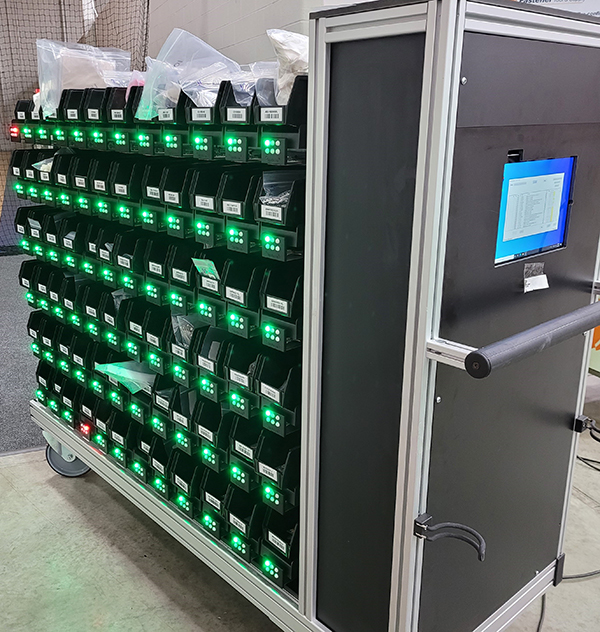

Mobile Cart - with four 5.5" locking, swivel casters. Designed to allow two-sided access and to make full use of dynamic scale sizing. Easy to push using a large rubberized handle. A 20' power cable wraps neatly on J hooks. Max 144 bin locations.

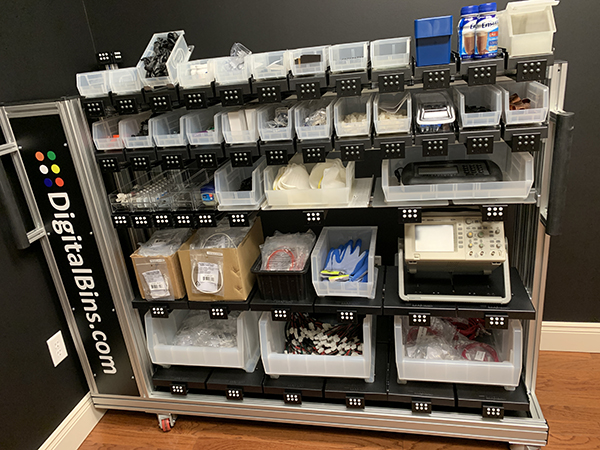

Mobile Rack - with four 4.75" jacking casters. Designed to accommodate staggered shelves for easy access and weight distribution. Easy to pull or push into position using two large rubberized handles. 10' power cable. Max 144 bin locations.

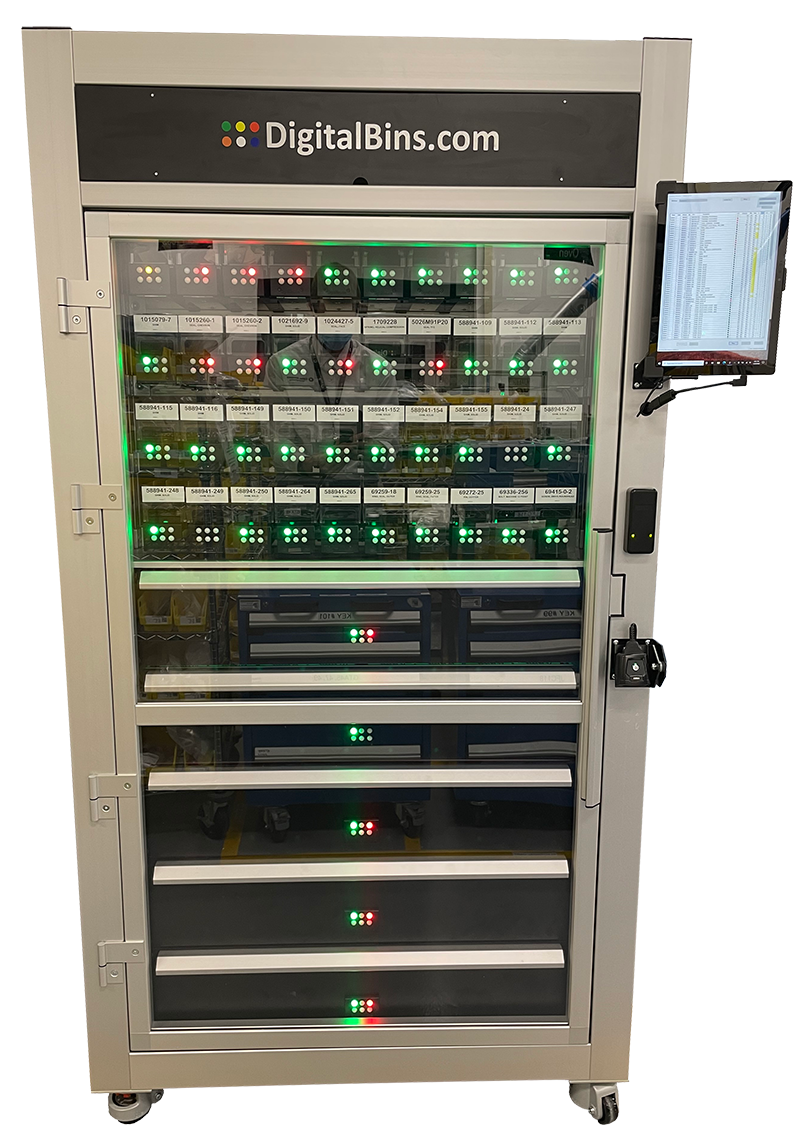

Semi-Secure Cabinet - Our semi-secure cabinet is constructed using light-weight, commercial grade, extruded aluminum. It is 78"h x 41 1/2"w x 31 1/2"d. The cabinet is mounted on jacking casters making it easy to move and easy to secure. The LEDs are clearly viewable through the clear plexi door. Includes an industrial electronic door latch, high or low frequency proximity reader, 2D bar code scanner, 2 DB Power Modules, Rack Mounted UPS, & 7 port USB splitter. Max 160 bin locations.



Options:
• Maximum of 10 shelves

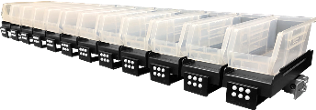

• 3”w x 12” black acrylic scale base and clear, locking acrylic bins
• 4”w, 6”w, 9”w & 12”w bin locations are available. Match the bin to the inventory.

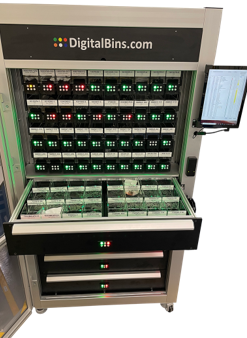

• Cabinet Drawer with 24 Bin Locations includes 24 x 3”h x 3”w x 3”d clear acrylic, locking bins specifically designed for our drawers. Each bin location has a max weight of 2 lbs. The drawers are auto-locking (one drawer open at a time). There is an LED module on the outside of the drawer that may be used with LED Netting. Max 5 drawers / cabinet (each drawer replaces one shelf space)

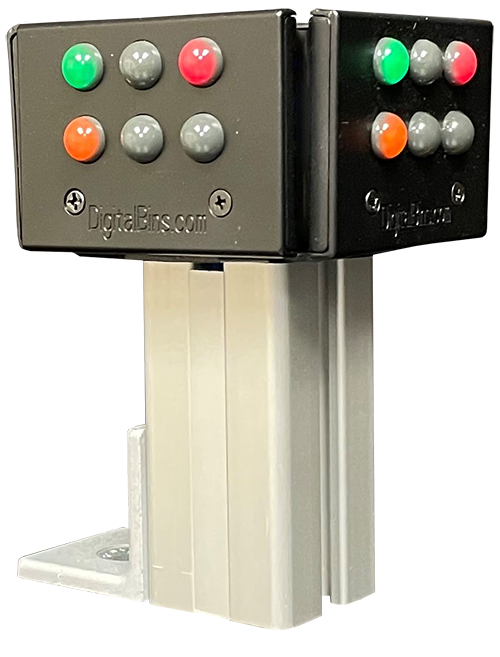

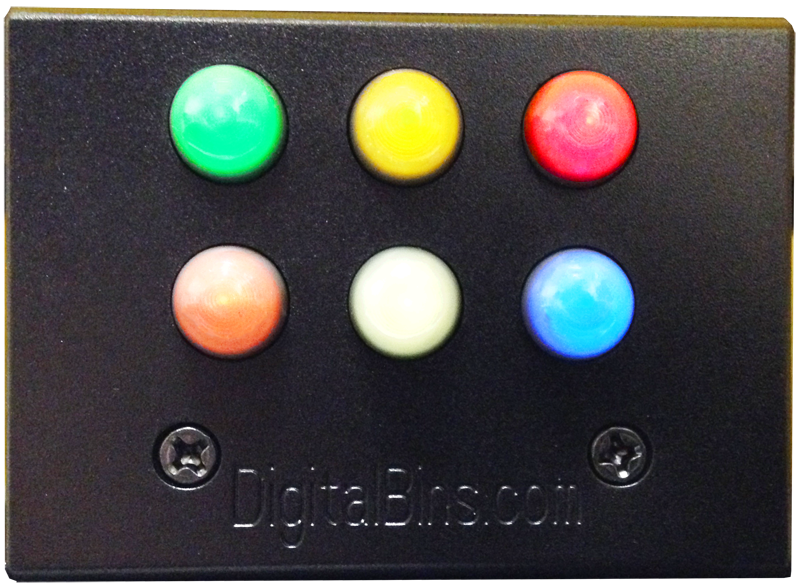

• LED Netting Tower - LED Netting is yet another software only DigitalBins.com innovation. This technique allows one LED module to reflect the status of many. When used on a drawer, the Netted-to LED module on the outside of the drawer reflects a summation of all of the LED modules inside the drawer. If any bin location on the inside of the drawer has an inventory level indicator of red, the red LED will be lit on the Netting LED module as well. The same is true for all of the other LEDs. This will make it easy to spot bin locations with low levels of inventory without having to open each drawer. LED netting also works with the Message LEDs (Orange, White & Blue). When the Part Locator is running, the Netted-to LED module will indicate which drawer(s) contain the part being located.

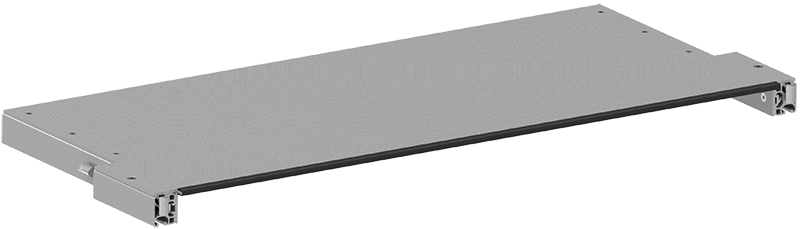

• Drawer Cover - One per cabinet






Point of Use System -New for 2020 is our Point of Use System. This unit will insure inventory visibility and replenishment notification at each work area. It includes: 6 x 4"w x 12"d 3LB max scales. Select wired / wireless Ethernet and soon, or new distributed processing architecture. It may be mounted to a short arm, long arm or mobile cart. Includes a wall mounting bracket.



Micro-Cilent Processor (MCP) Intergration - The MCP will connect any DigitalBins cart, cabinet, point-of-use system, etc. to a server where bidirectional Advanced Message Queueing Protocol (AMQP) messages may be exchanged.

Locker Control Module - With the addition of our proprietary Locker Control Module, each DB Controller is capable of opening and monitoring 36 electronic door openers. There is no limit to the number of electronic door openers that may be controlled our software, DB Controller(s) and Locker Control Module(s). Initially, the Locker Control Module will be used to control multiple doors on ganged cabinets (multiple cabinets bolted together). In 2022, we plan to introduce a line of DigitalBins.com locker systems.
