Brackets

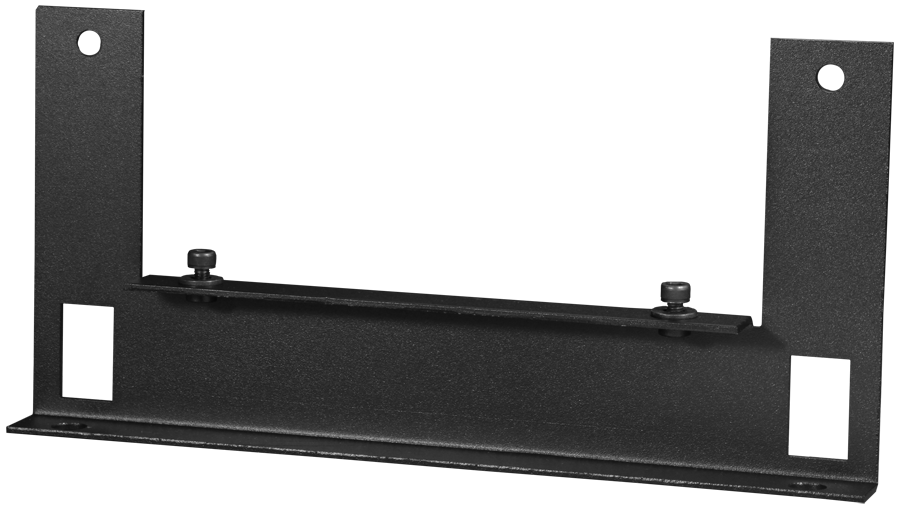

DB6001-001 Strut Bracket Kit




Part # Description
Price
DB6001-001
Strut Mounting Brackets Kit Inquire

Includes:
Part # Description # of Units
DB1100-002 Strut Shelf 2

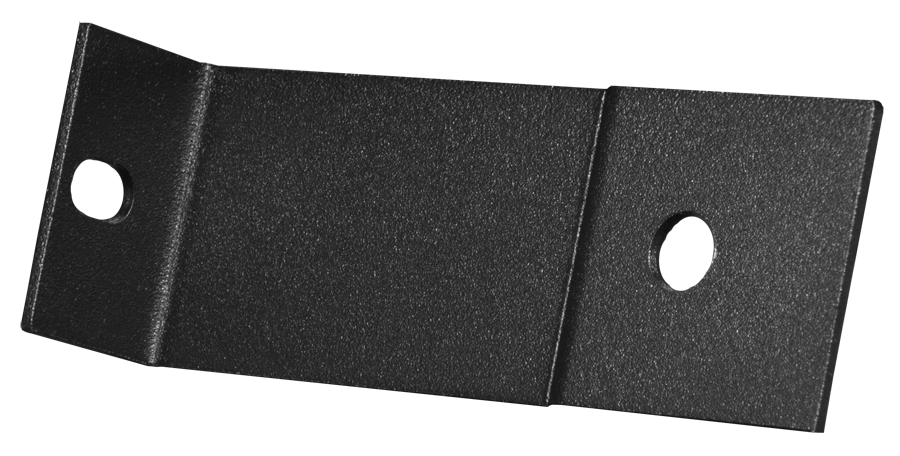

DB1120-002 Spacer 4

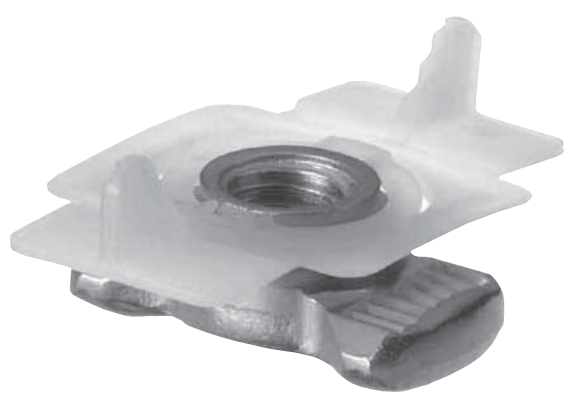

Hilti-106 MQM 3/2 Clamp 4
DB506 3/8 Hex Bolt & Washer 4
DB510 1/4 Hex Bolt & Washer 8

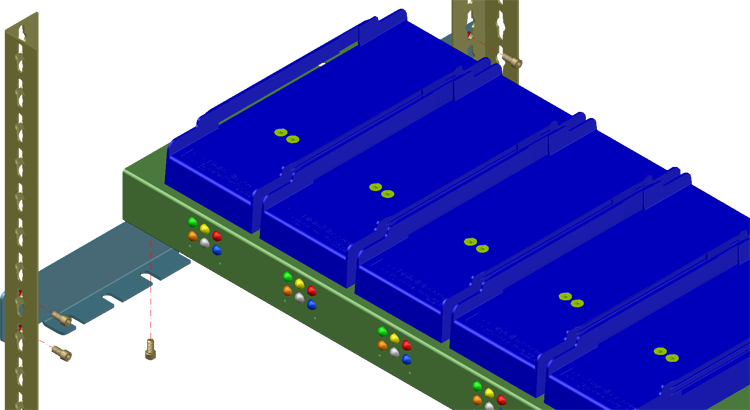

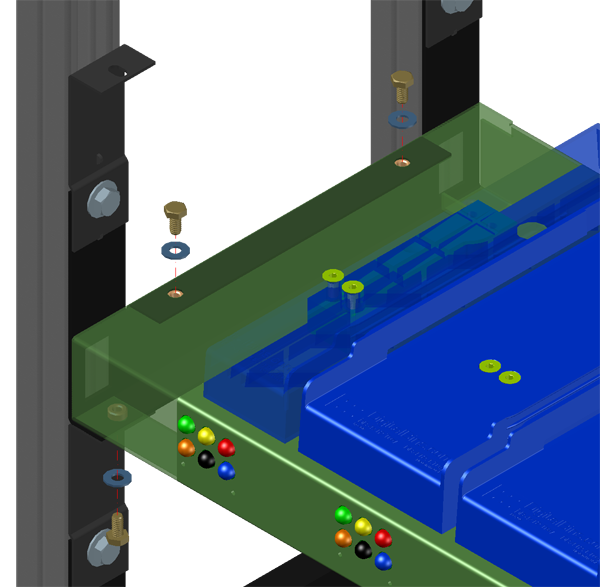

Strut Brackets are used to mount a 60” shelf to either Hilti or UniStrut strut.

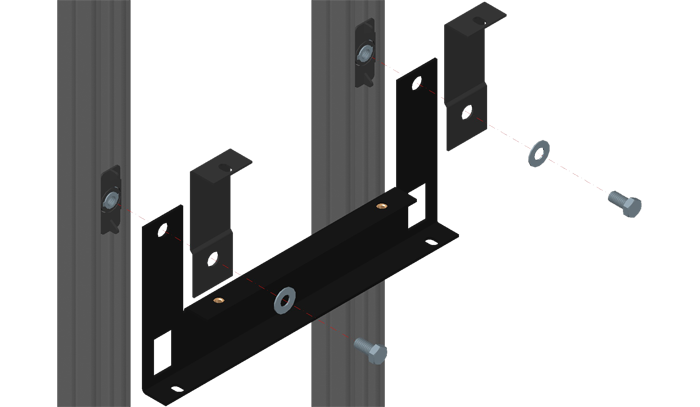

Strut Mounting Brackets will allow each shelf to be easily slid into a rack constructed using 1 5/8” Hilti, UniStrut, etc., strut. Convenient spacers are included with the Strut Mounting Brackets to make it easy to space shelves in the rack. Strut mounting will protect daisy-chaining wires from unwanted factors such as vandalism and rodents.

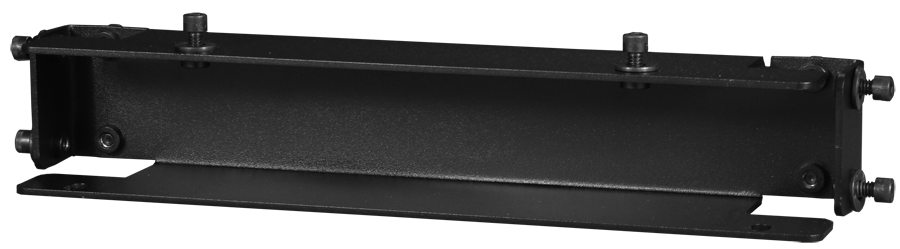

DB6002-001 Shelf Closure Kit






Part # Description
Price
DB6002-001
Shelf Closure Kit Inquire

Includes:
Part # Description # of Units
DB1107-001 Shelf Closure Bracket 2
DB510 1/4 Hex Bolt & Washer 4
DB514 Base Leveling Feet 4
DB515 Dome Plug 4





Shelf Closure Kit is used when the shelf will be placed on an existing shelf.

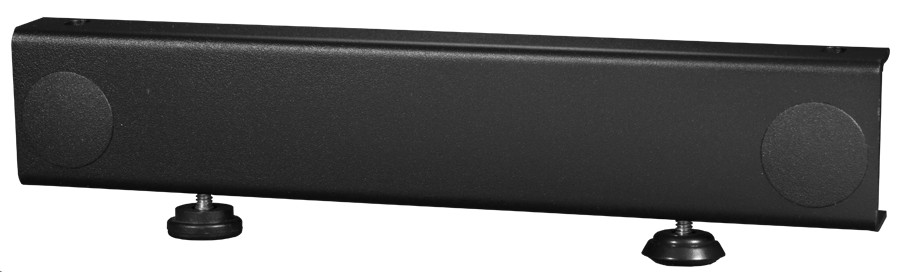

The Shelf Closure Bracket allows a 60” DigitalBins shelf to sit flat on any surface including existing shelves. Each Shelf Closure Bracket includes two rubber leveling feet and wire management openings.

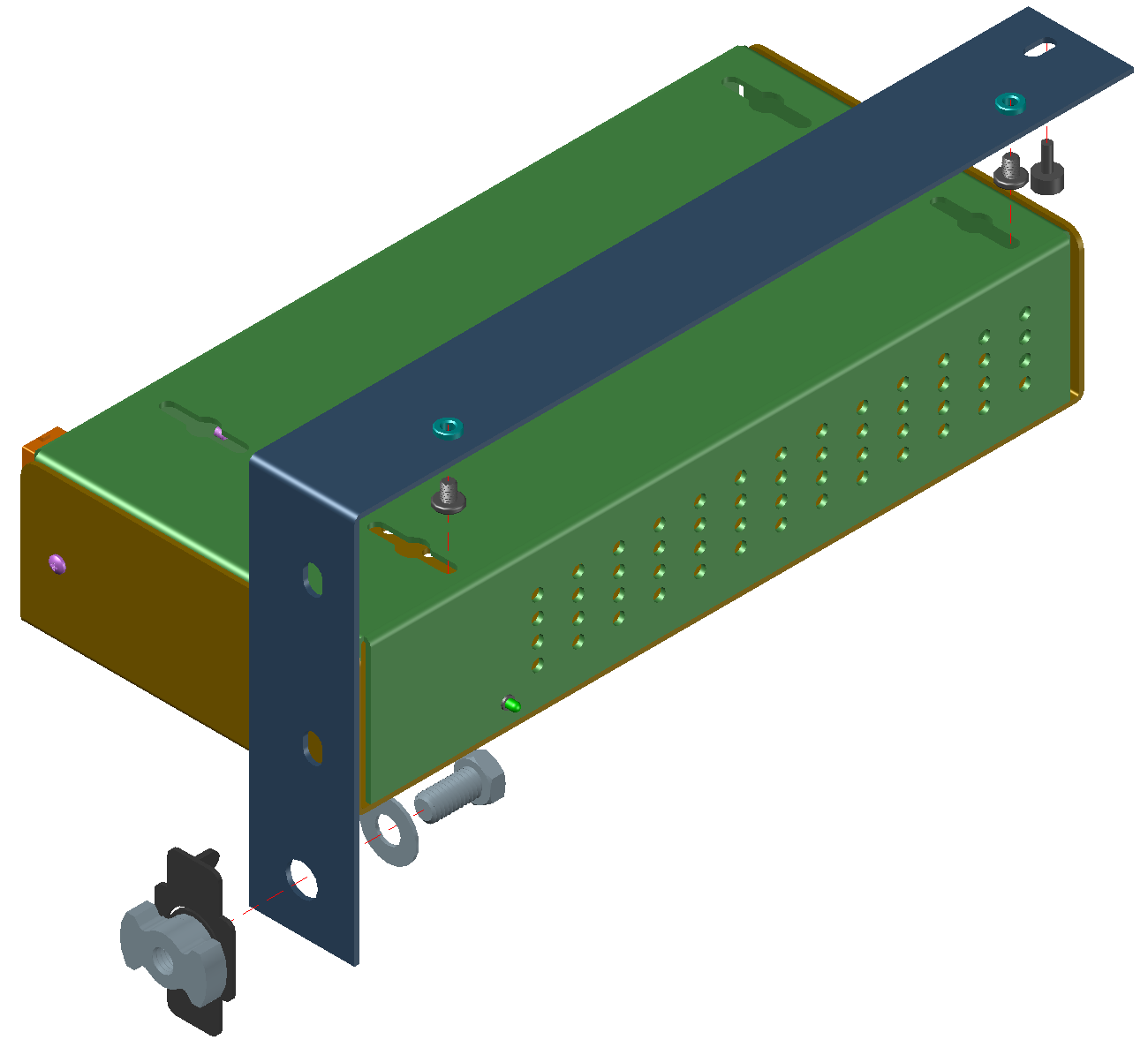

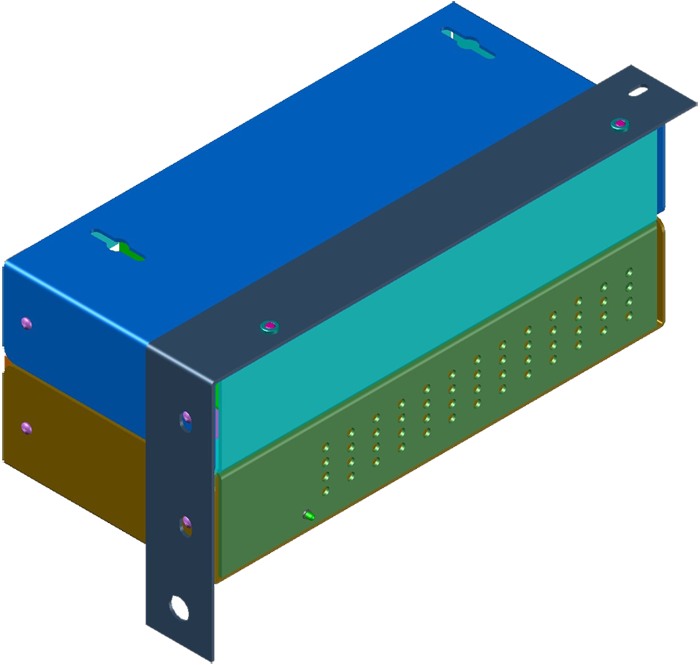

DB6003-001 DB Power Module - Strut Mounting Bracket


Part # Description
Price
DB6003-001
DB Power Module - Strut Mounting Kit Inquire

Includes:
Part # Description # of Units
DB3502-003 Strut Bracket 1
DB519 M5 x 6mm Rivet Screw 2
Hilti-106 MQM 3/8 Clamp 1
DB510 3/8/ x 16 Hex Bolt Washer 1
DB522 6-32 3/8 Pan Head Screw 1





DB Power Module - Strut Mounting Kit

1 Bracket; Hardware. Hilti & Unistrut

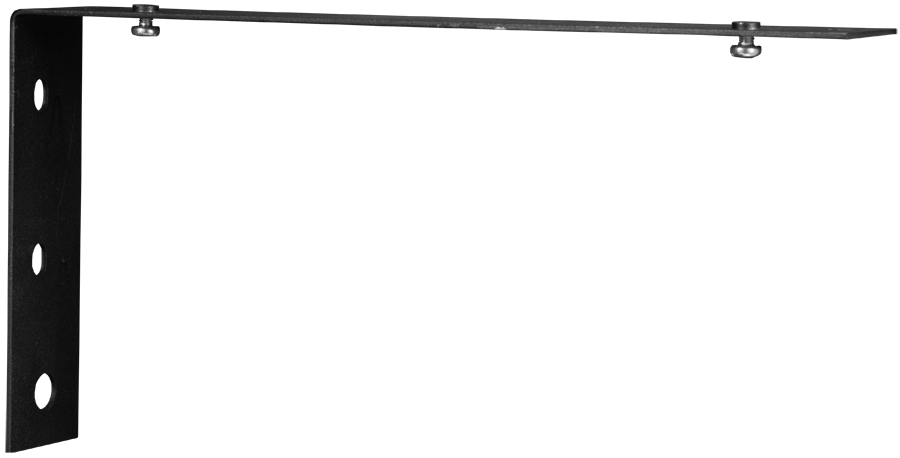

DB6004-001 12"d Angle Iron Mounting Brackets






Part # Description
Price
DB6004-001
12"d Angle Iron Mountng Kit (pair) Inquire

Includes:
Part # Description # of Units
DB1108-001 12"d Angle Iron Bracket 2
DB509 M6 x 10mm Socket Cap Screw 20
DB510 1/4"-20 x 1/2" Hex Bolt 4
DB511 1/4" Flat Washer 20







12”d Angle Iron Mounting Kit

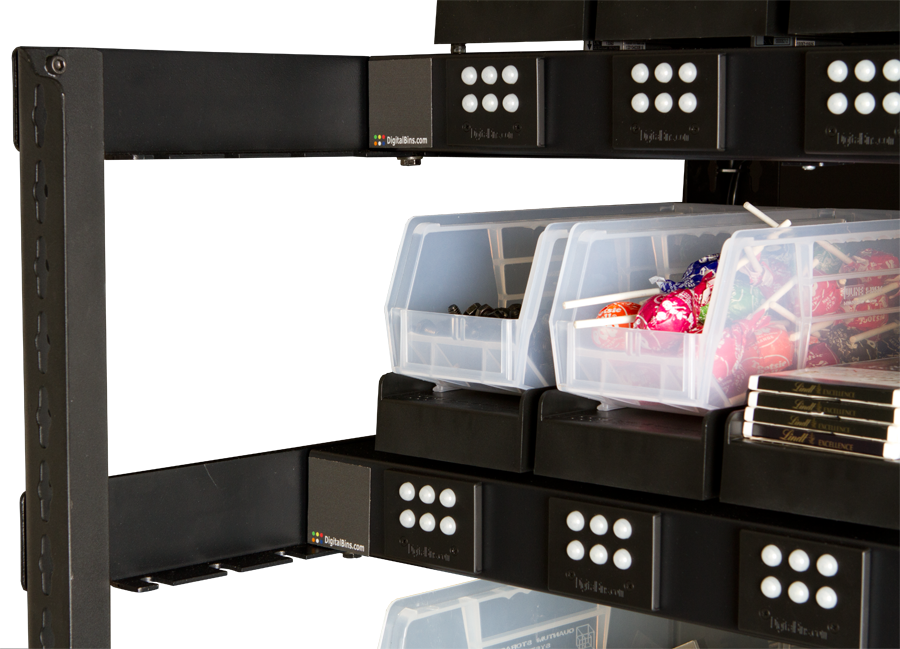

Angle Iron Mounting Brackets will allow each shelf to be mounted to commonly available and inexpensive posts. Once installed, each shelf will have 4 bolting points per post making this racking method extremely sturdy. The stamped eyelets in each post make it easy to adjust the shelf height and level each shelf.

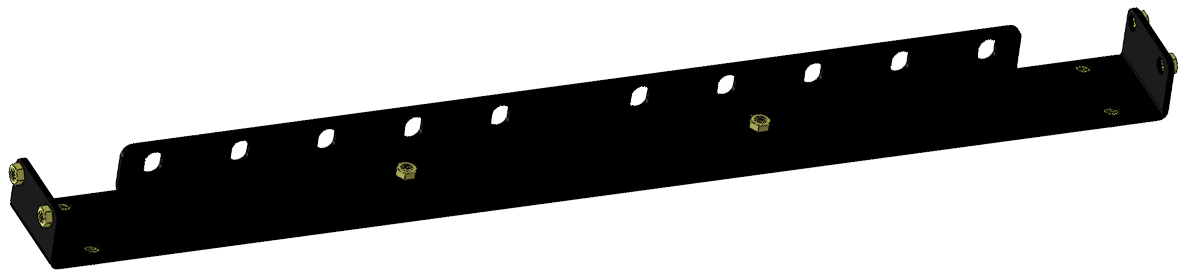

DB6005-001 24"d Angle Iron Mounting Brackets






Part # Description
Price
DB6005-001
24"d Angle Iron Mounting Kit (pair) Inquire

Includes:
Part # Description # of Units
DB1109-002 24"d Angle Iron Bracket 2
DB509 M6 x 10mm Socket Cap Screw 16
DB510 1/4"-20 x 1/2" Hex Bolt 4
DB511 1/4" Flat Washer 24







24”d Angle Iron Mounting Kit

Angle Iron Mounting Brackets will allow each shelf to be mounted to commonly available and inexpensive posts. Once installed, each shelf will have 4 bolting points per post making this racking method extremely sturdy. The stamped eyelets in each post make it easy to adjust the shelf height and level each shelf. In addition, the DB6005-001 allows each 60” shelf in the rack to be offset by two inches. This design facilitates optimum weight distribution and allows for easier bin access especially when spacing between shelves is tight.
